ConnectX®-5 is an Ethernet PCI express adaptor.

Currently, only video input is supported in Reality, which means, AJA video card is also required to get video output. As we recommend installing AJA video I/O on PIC express slot no. 5, ConnectX® - 5 must be installed on PCI express slot 3 as shown in the image below.

Supported Slot Order & Configuration with Reality Engine

Slot

Electrical

Mechanical

Card

1

x16 PCIe Gen 3

x16

GPU

2

x4 PCIe Gen 3

x4

-

3

x16 PCIe Gen 3

x16

ConnectX® - 5 video card

4

x4 PCIe Gen 3

x4

-

5

x8 PCIe Gen 3

x8

Video I/O card (For Output)*

Installation of ConnectX®-5 card on PCIe Slot

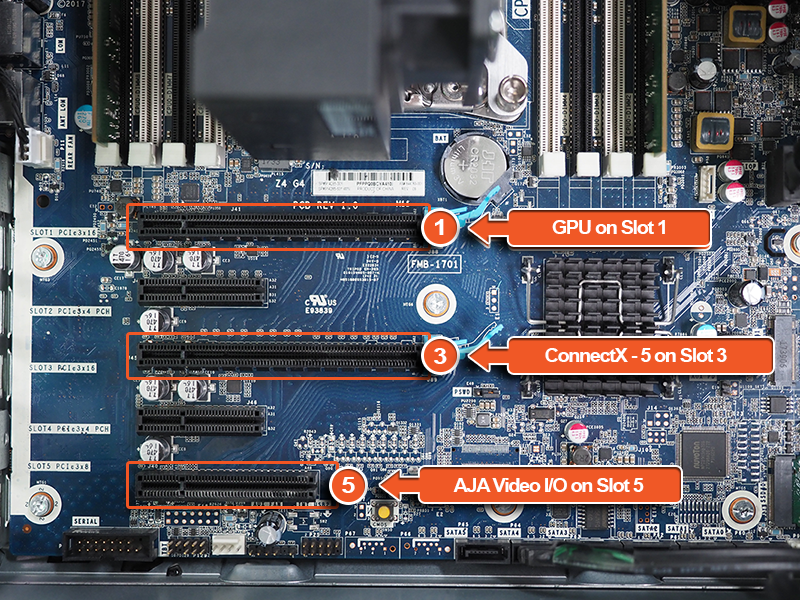

The below image shows the motherboard marked with Slot 1 (for GPU), Slot 3 (for ConnectX®-5), and Slot 5 (for AJA video I/O).

Once the hardware is installed, the configuration of this hardware is necessary.

  • This AJA video card can also be used for additional input and output in combination with IP input.
